TP-Link Archer C80 WiFi Router AC1900 Wave2, Dual Band, 5x RJ45 1000Mb/s

€55.00

Compare
Categories: ,

Description

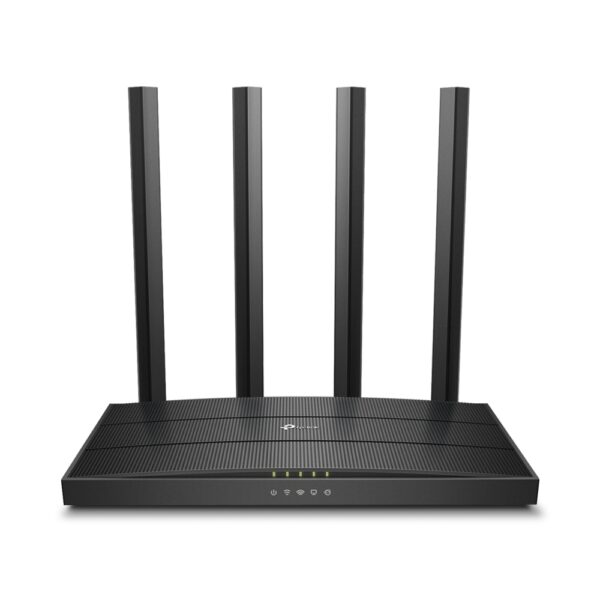

TP-Link Archer C80, dual-band Wi-Fi router

Archer C80 is a dual-band 802.11ac Wave2 home router. The device supports 3×3 MIMO technology, which can achieve up to 1/3 higher speeds compared to 2×2 MIMO technology. It has four Gigabit LAN ports for connecting devices such as desktop PC, NAS or IPTV and one Gigabit WAN port for network connection.

TP-LINK ARCHER C80

High performance Wi-Fi in your home

The Archer C80 provides high-performance and affordable home Wi-FI with aggregate speeds of up to 1900 MB/s. The device supports simple tasks such as emailing and web browsing in the 2.4 GHz band, while bandwidth-intensive tasks such as online gaming or 4K/8K streaming are supported over the 5 GHz band.

TP-LINK ARCHER C80

Beamforming

The Router has four external antennas with Beamforming technology, which detects the connected devices and focuses the signal in the right direction. So you can enjoy wireless coverage over even longer distances.

C80

MU-MIMO

The MU-MIMO technology used in Archer C80 allows it to communicate with multiple devices simultaneously, so you can fully enjoy the performance of your home network. The Smart Connet feature is responsible for properly connecting the device to the correct radio frequency, while the Airtime Fairness feature prevents older devices from slowing down your network.

C80

Full Gigabit ports

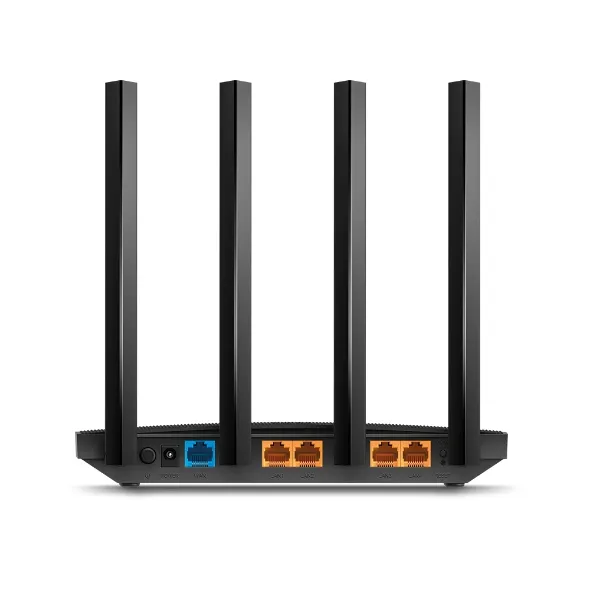

Gigabit Ethernet ports (1 WAN + 4 LAN) provide maximum connection speed.

C80

Easy management with the Tether app

Set up the Archer C80 in just minutes by using the intuitive web interface or the powerful Tether app. Tether lets you manage your network settings from any Android or iOS device.

C80

Specification

Features / filters

3G
No
4G
No
AC adapter included
Yes
Access Control List (ACL)
Yes
Antenna type
External
Antennas quantity
4
Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Cables included
AC, LAN (RJ-45)
Cabling technology
10/100/1000Base-T(X)
Certification
CE, FCC, RoHS
DC-in jack
Yes
Depth
125
Detachable antenna(s)
Yes
DHCP client
Yes
DHCP server
Yes
DMZ support
Yes
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
5
Ethernet LAN data rates
10,100,1000
Ethernet LAN interface type
Gigabit Ethernet
Ethernet WAN
Yes
Firewall
Yes
Guest access
Yes
Harmonized System (HS) code
85176990
Height
30
LED indicators
LAN, Power, Status, WLAN, WPS
Linux operating systems supported
Yes
MAC address filtering
Yes
Mac compatibility
Yes
Mac operating systems supported
macOS
Memory card slot(s)
No
Mobile network generation
4G
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
On/off switch
Yes
Operating relative humidity (H-H)
10 – 90
Operating temperature (T-T)
0 – 40
Output voltage
12
Package depth
240
Package height
82
Package weight
800
Package width
350
Port forwarding
Yes
Power source type
DC
Product colour
Black
Product type
Tabletop router
Quick installation guide
Yes
Receiver sensitivity
5 GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm, 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm 11n VHT20
Reset button
Yes
Security algorithms
64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
SIM card slot
No
Stateful Packet Inspection (SPI)
Yes
Storage relative humidity (H-H)
5 – 90
Storage temperature (T-T)
-40 – 70
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Transmit power
CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz), FCC:<30dBm(2.4 GHz & 5 GHz)
Universal Plug and Play (UPnP)
Yes
USB port
No
Wall mountable
Yes
WAN connection type
RJ-45
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Width
215
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise
WLAN data transfer rate (first band)
600
WLAN data transfer rate (max)
1300
WLAN data transfer rate (second band)
1300
WPS push button
Yes

Specification

Standards
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi network speeds
AC1900 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n)
WiFi network coverage
Three-room houses 4 powerful integrated antennas The antennas provide enough power to strengthen the network signal and cover a large area Beamforming Direct the network signal to the client to increase Wi-Fi coverage
WiFi performance
Medium Dual Band Distributes devices between available bands for optimal performance MU-MIMO 3×3 Allows simultaneous communication with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by reducing inefficient use of bandwidth
Operating modes
Router mode Access point mode
Processor
1.2 GHz processor
Ethernet Ports
1 Gigabit WAN port 4 Gigabit LAN ports
Buttons
WPS/Wi-Fi Power supply Reset
Power
EU version 12 V ⎓ 1 A
WiFi network encryption
WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)
Network security
SPI firewall Access control IP and MAC address binding Application Layer Gateway
Guest Network function
5 GHz guest network 2.4 GHz guest network
Protocols
IPv4 IPv6
Parental controls
URL Filtering Temporary access restrictions
WAN types
Dynamic IP Address Allocation Static IP address assignment PPPoE PPTP L2TP
Quality of Service
QoS priorities for devices
Cloud service
Firmware OTA updates TP-Link ID DDNS
NAT forwarding
Port Forwarding Port Triggering DMZ UPnP
IPTV
IGMP Proxy IGMP Snooping Bridge VLAN tagged
DHCP
Address Reservation List of DHCP clients Server
DDNS
TP-Link NO-IP DynDNS
Management
Tether application Management page
Dimensions (H×W×D)
215 × 117 × 32 mm (8.5 × 4.6 × 1.26 inches)
Contents of the package
Archer C80 Wi-Fi Router Power adapter RJ45 Ethernet Cable Quick Installation Guide
System requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other browser with JavaScript enabled Cable Modem or DSL (if required) Contract with an internet service provider (internet access)
Certificates
FCC, CE, RoHS
Work environment
Operating temperature: 0℃~40℃ (32℉ ~104℉) Storage temperature: -40℃~70℃ (-40℉ ~158℉) Operating air humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing
